Multifunctional Wafer Cone Production Line / Ice Cream Cone Baking machine
Quick Detail
The stirred dough is sent to the baking plate bottom plate by the blanking pump, and the panel of the baking plate is automatically closed, and the dough cake is shaped according to the thickness of the set cake, and then the rotating plate is turned into a baking plate. It is baked in an oven consisting of upper and lower fire nozzles. After baking, the noodle paste has become a dough cake. The robot cake accurately feeds the dough cake into the roll mold and rolls it into a finished product. The finished product is delivered.
Wafer Cone Production Line Features
1. Our Ice Cream Cone Product Line can also be custom-made to suit your product of different specifications.
2. One bIce Cream Cone Product Line can produce different products like waffle ,egg roll,sugar cone etc.by choosing different moulds.
3. One person operation,convenient and practical. High quality electrical components,temperature control thermostat using Promise.
Wafer Cone Production Line Parameters
| Model |
Input power |
Machine dimension |
weight |
LPG consumption |
Baking plate quantity/machine |
Product size(mm) |
Output/hour |
| SD80-61A |
4.37kw |
L9.8xW2.1xH2m |
6000kg |
10-12kg/h |
61 |
165mm |
3400-3800pcs/h |
Standard equipment:
1,conveyor
Voltage:220V
Power:0.75kw
Dimension: 5mx0.6mx0.7m
It is used to deliver the finished products to the assembly shop in a neat line.
2,optional equipment : automatic counting machine
Power: 0.75kw
Dimension: 2mx0.9mx0.7m
It is used to automatically stack the molded products of the paper sleeve into a string, and wait for the box according to the set number. The set value is 1-50/string.
FAQ
Q: Can you arrange your technicians to install the machine for us?
A: Yes,We will assign our engineers to go abroad for installing machines for our users.
Q: How about delivery?
A:We can help you transport, or we can provide you with the size of the machine, you can consult the forwarding company yourself.
Q:What's the MOQ?
A:The MOQ(minimum order quantity) is one set.
Q:How could we operate such equipment after getting it in our country.
A:We will teach our customer the operation process,and provide them the operating video.
Company Profile
Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.
In order to meet market needs and customer’s demand, besides the most regular TT25 sugar cone baking machine, we developed new model TT25-40, TT25-36 and TT25-30 of the TT25 series. TT26 series are electric baking machine which include model TT26-45, TT26-40, TT26-36 and TT26-30. SD80 series are the most advanced caterpillar track type baking machine, which include model SD80-37x2 and model SD80-53x2.
Product Tags:
|
|

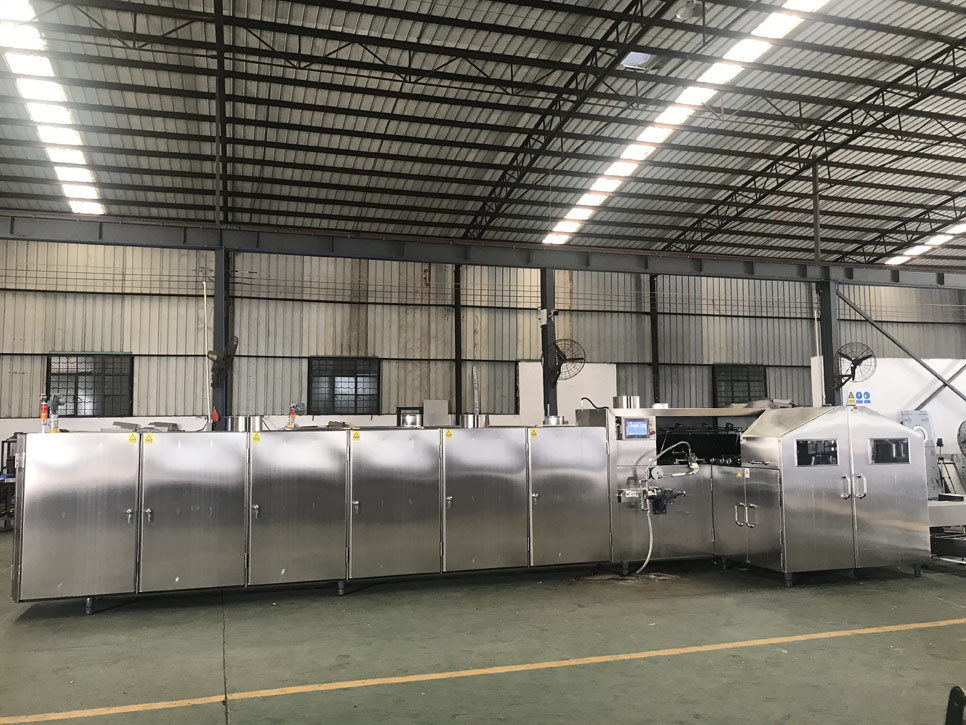

Multifunctional Wafer Cone Production Line 3800pcs/h Ice Cream Cone Baking Machine Images
|
